Description
ADA DropIn Sinks feature shallow basins and a top mounted design to help meet ADA requirements for under-sink knee space. The DropIn style simplifies installation and seals the sink cutout. This also eliminates the worksurface overhang between the inner walls of undermount sink basins and the sink cutout which can gather residual chemicals and bacteria.
Basin sizes and depths are available to fit a wide variety of applications. All ADA DropIn Sinks are available with space creating corner drains. This design moves plumbing to the back of the supporting cabinet to maximize usable Areas. All DropIn Sink surfaces are clearly visible and radiused for ease of cleaning.

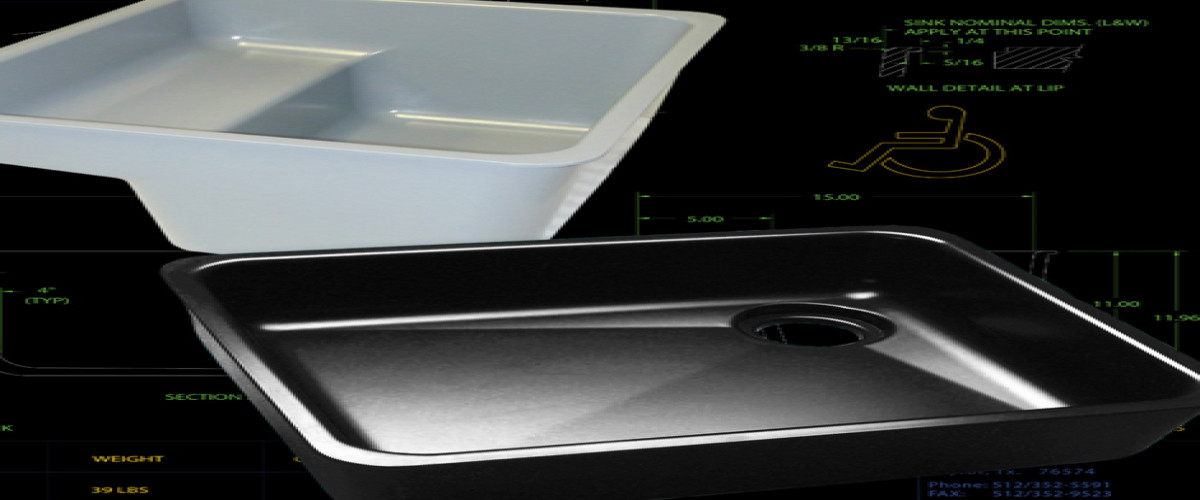

ADA DropIn Sink
SKU | Weight (lb) | Inside X (in) | Inside Y (in) | Inside Depth (in) | Outlet Placement | Outlet Loc X (in) | Outlet Loc Y (in) |
---|---|---|---|---|---|---|---|
SNKA-05 | 18 | 14 | 10 | 5 | Corner | 3.5 | 3.5 |
SNKA-07 | 24 | 14 | 14 | 5 | Corner | 3.5 | 3.5 |
SNKA-25 | 35 | 18 | 15 | 5 | Corner | 3.5 | 3.5 |
SNKA-M25 | 37 | 18 | 15 | 2.4 | Corner | 3.5 | 3.5 |
SNKA-26 | 39 | 18 | 15 | 5/11 | Corner | 4.5 | 4.5 |
SNKA-55 | 47 | 25 | 15 | 4.8 | Corner | 3.5 | 3.5 |
SNKA-56 | 50 | 25 | 15 | 5/11 | Corner | 5.5 | 4.5 |

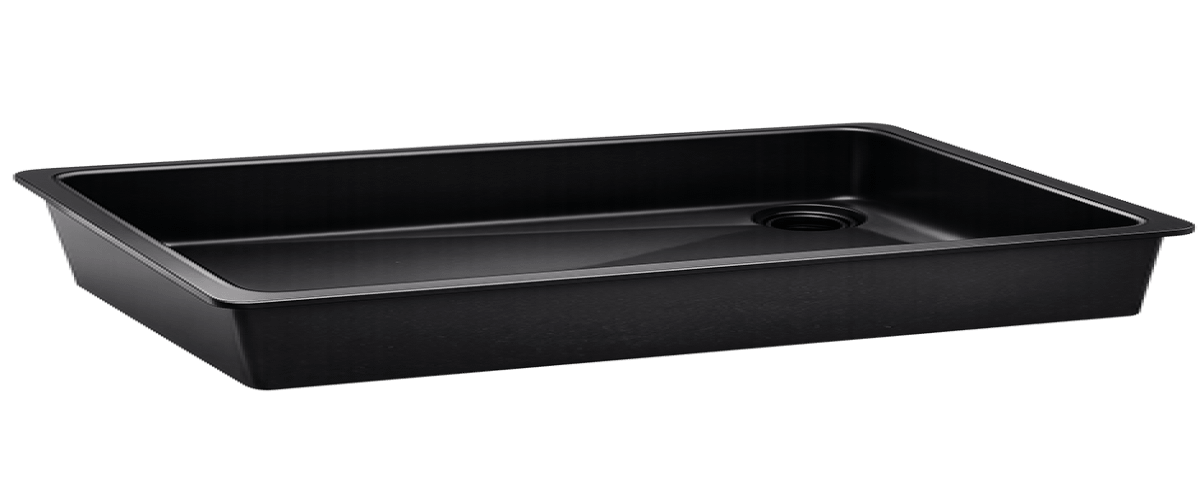

ADA DropIn Sink SNKA-05
